GSC Power-Division High Pressure Conical Spring kit with Ti Retainer 4G63T
GSC Power-Division High Pressure Conical Spring kit with Ti Retainer 4G63T
- IN: 105 lbs @ 1.495" / EX: 111 lbs @ 1.475" install Height
- IN: 267 lbs @ 1.003" / EX: 267lbs @ 1.003" open Height
Check your valve spring install heights here
Warning:
This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.
*Flip phone to landscape to see full table!*
GSC5098 High Pressure Conical Valve Spring Kit with Ti Retainer for 4G63 | |||||
Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 12.5mm Intake Lift 12.0mm Exhaust Lift | Maximum Valve Lift (in) |
HP Conical | 0.950 | 1.495 / 1.475 | 105 /111 | 267 lbs @ 1.003" | .492" Intake .472" Exhaust |
- Max RPM: 10,500 RPM
- Max boost: 50 psi

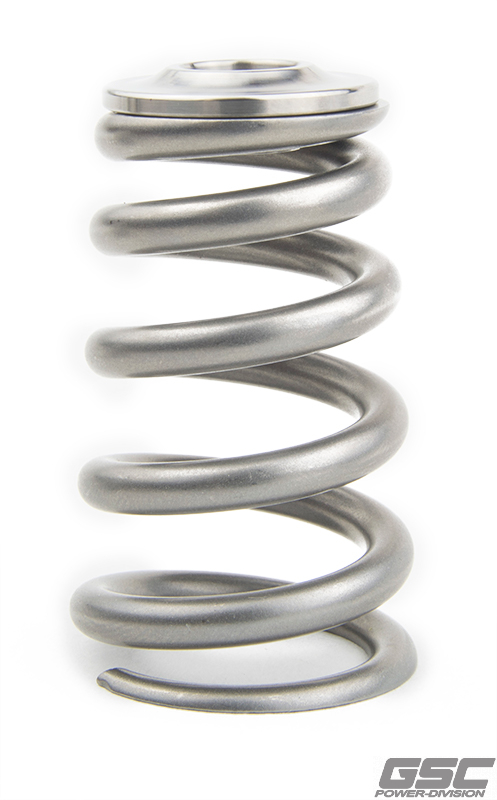

The GSC Power-Division Conical Valve Spring Kit with Ti retainer for 4G63T includes 16 titanium retainers and 16 conical valve springs and 16 spring seats. Able to use NEW OEM valve spring keepers or our GSC1003 keeper kit. No need for special aftermarket locks that have the potential of being the wrong angle. Conical springs allow for the use of a smaller, lighter retainer and have a varying spring rate allowing for higher RPM and more valve control.
