Ford - 5.2L Voodoo/Predator — GT350/GT500

1 make 6 Component Types 10 products

Ford Ford
Camshafts Camshafts Intake Valves Intake Valves Exhaust Valves Exhaust Valves Valve Guides Valve Guides Valve Stem Seals Valve Stem Seals Spring Kit Spring Kit

Ford - 5.2L Voodoo/Predator — GT350/GT500

Skip to results list
10 items

Filters

Availability
Component type
Make
Includes Stopper
Application
Valve Guides
Outer Diameter ( IN )
Outer Diameter ( MM )
Total Length ( IN )
Total Length ( MM )
Valve Stem Diameter ( MM )
Valve Stem Diameter ( In )
Spring Kits
Setup

Filter

Availability
Component type
Make
Includes Stopper
Application
Valve Guides
Outer Diameter ( IN )
Outer Diameter ( MM )
Total Length ( IN )
Total Length ( MM )
Valve Stem Diameter ( MM )
Valve Stem Diameter ( In )
Spring Kits
Setup
  • GSC R3 Camshafts – Voodoo Cross Plane

    GSC R3 Camshafts – Voodoo Cross Plane

    Camshafts

    R3 Camshafts for Voodoo Cross Plane

     SKU:GSC7075R3 Make:Ford Series:R3
    Intent
    Extreme race · ported heads
    Fuel
    Methanol
    Advertised Duration
    300°/IN 316°/EX
    Duration @ 0.050"
    246°/IN 252°/EX
    Max Lift
    .560"/IN .560"/EX
    RPM Band (Peak)
    Active: 7k–10k (9.1k–9.3k~9.6k–10k) · Locked: 6.7–9.5k (8.3k–8.5k~8.8k–9.2k)
    Valve Springs
    Upgrade required (GSC springs + Ti retainers)
    Head Type
    Ported heads
    Notes
    Active or locked VCT; timing refs on product page
    $2,089.41
    $2,089.41 $2,089.41
  • GSC R2 Camshafts – Voodoo Cross Plane

    GSC R2 Camshafts – Voodoo Cross Plane

    Camshafts

    R2 Camshafts for Voodoo Cross Plane

     SKU:GSC7075R2 Make:Ford Series:R2
    Intent
    Top end stock-port / ported head race profile
    Advertised Duration
    292°/IN 316°/EX
    Duration @ 0.050"
    239°/IN 241°/EX
    Max Lift
    .560"/IN .560"/EX
    Fuel
    Pump / Race / E85–E90
    RPM Band (Peak)
    6,000–8,500 (8,100–8,300)
    Valve Springs
    Upgrade required (GSC springs + Ti retainers)
    Head Type
    Stock and ported heads
    Notes
    VCT retained; track-focused high-flow combos
    $2,089.41
    $2,089.41 $2,089.41
  • GSC R3 Camshafts – Voodoo Flat-Plane

    GSC R3 Camshafts – Voodoo Flat-Plane

    Camshafts

    R3 Camshafts for Voodoo Flat-Plane

     SKU:GSC7077R3 Make:Ford Series:R3
    Intent
    Extreme race · ported heads
    Advertised Duration
    300°/IN 316°/EX
    Duration @ 0.050"
    246°/IN 252°/EX
    Max Lift
    .560"/IN .560"/EX
    Fuel
    Methanol
    RPM Band (Peak)
    Active: 7k–10k (9.1k–9.3k~9.6k–10k) · Locked: 6.7–9.5k (8.3k–8.5k~8.8k–9.2k)
    Valve Springs
    Upgrade required (GSC springs + Ti retainers)
    Head Type
    Ported heads
    Notes
    Active or locked VCT; timing refs on product page
    $2,089.41
    $2,089.41 $2,089.41
  • GSC R2 Camshafts – Voodoo Flat Plane

    GSC R2 Camshafts – Voodoo Flat Plane

    Camshafts

    R2 Camshafts for Voodoo Flat Plane

     SKU:GSC7077R2 Make:Ford Series:R2
    Intent
    Top end stock-port / ported head race profile
    Fuel
    Pump / Race / E85–E90
    Advertised Duration
    292°/IN 304°/EX
    Duration @ 0.050"
    239°/IN 241°/EX
    Max Lift
    .560"/IN .560"/EX
    RPM Band (Peak)
    6,000–8,500 (8,100–8,300)
    Valve Springs
    Upgrade required (GSC springs + Ti retainers)
    Head Type
    Stock and ported heads
    Notes
    VCT retained; track-focused high-flow combos
    $2,089.41
    $2,089.41 $2,089.41

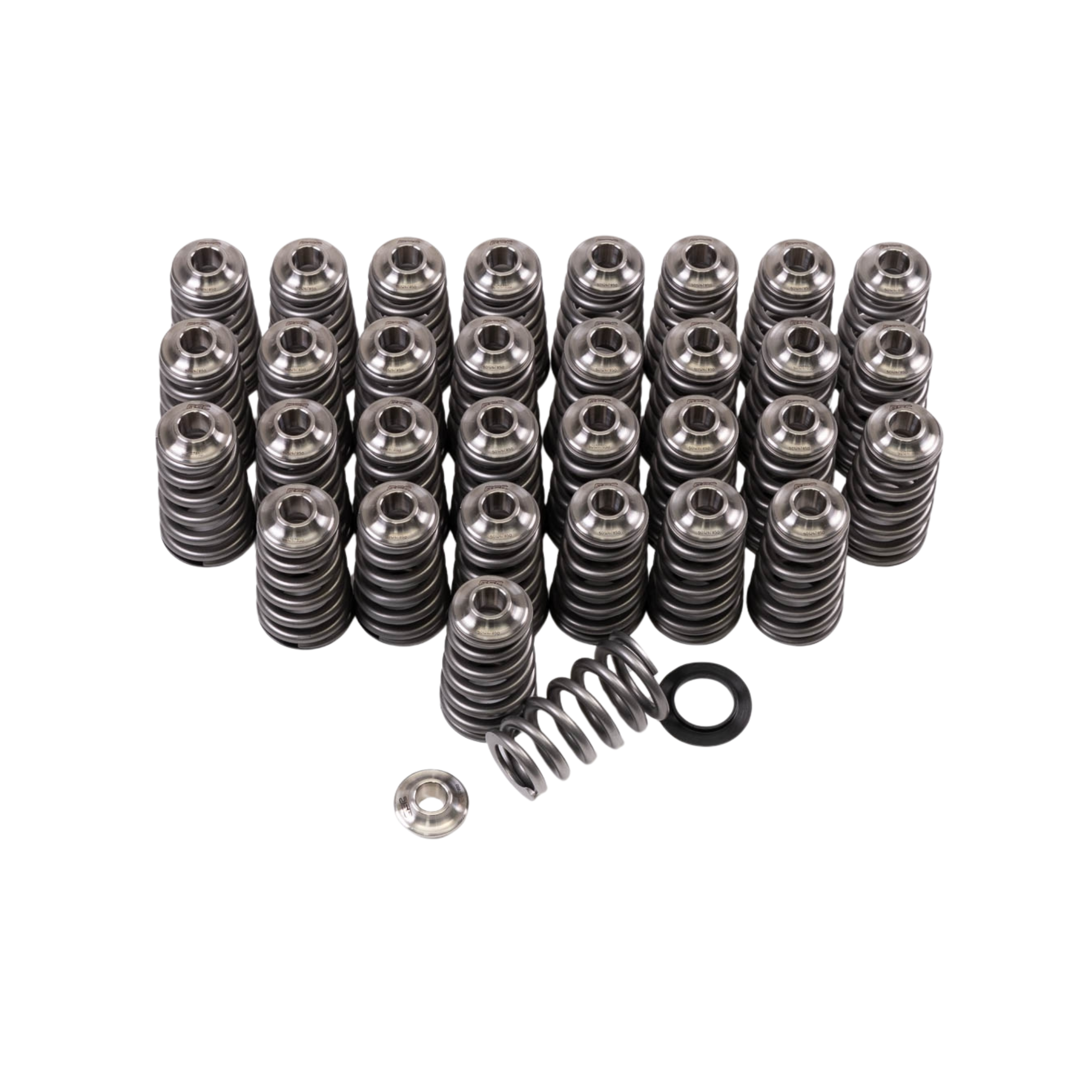

  • GSC Power-Division Ovate Conical Spring kit Ford Voodoo and Preditor 5.2L

    GSC Power-Division Ovate Conical Spring kit Ford Voodoo and Predator 5.2L

    Spring Kit

    Ovate Conical Spring kit Ford Voodoo and Predator 5.2L

     SKU:GSC5013 Make:Ford Spring Type:Ovate Conical Coil Bind:0.960 Install Height:1.613 Seat Pressure ( Lbs ):103 Open Pressure:298 lbs @ 1.020 Max Boost:35 psi
    $920.00
    $920.00 $920.00
  • GSC Power-Division Stopper Valve Guide for Ford 5.0L Coyote Gen 3 & 5.2L

    GSC Power-Division Stopper Valve Guides for Ford 5.0L Coyote Gen 3 & 5.2L

    Valve Guides

    Intake/Exhaust Valve Guides for Ford 5.0L Coyote Gen 3 & 5.2L with Stopper

     SKU:GSC3133 Make:Ford Total Length:1.715" / 43.56 mm Outer Diameter:0.4394" / 11.16 mm Valve Stem Diameter:0.2362” / 6 mm Stopper Protrusion:.575”
    From $7.59
    From $7.59 $7.59
  • GSC Power-Division Intake OR Exhaust Valve Guide for Ford Coyote

    GSC Power-Division Intake OR Exhaust Valve Guides for Ford Coyote

    Valve Guides

    Intake/Exhaust Valve Guides for Ford Coyote

     SKU:GSC3101 Make:Ford Total Length:1.715" / 43.56 mm Outer Diameter:0.4394" / 11.16 mm Valve Stem Diameter:0.2362” / 6.0 mm
    From $7.59
    From $7.59 $7.59

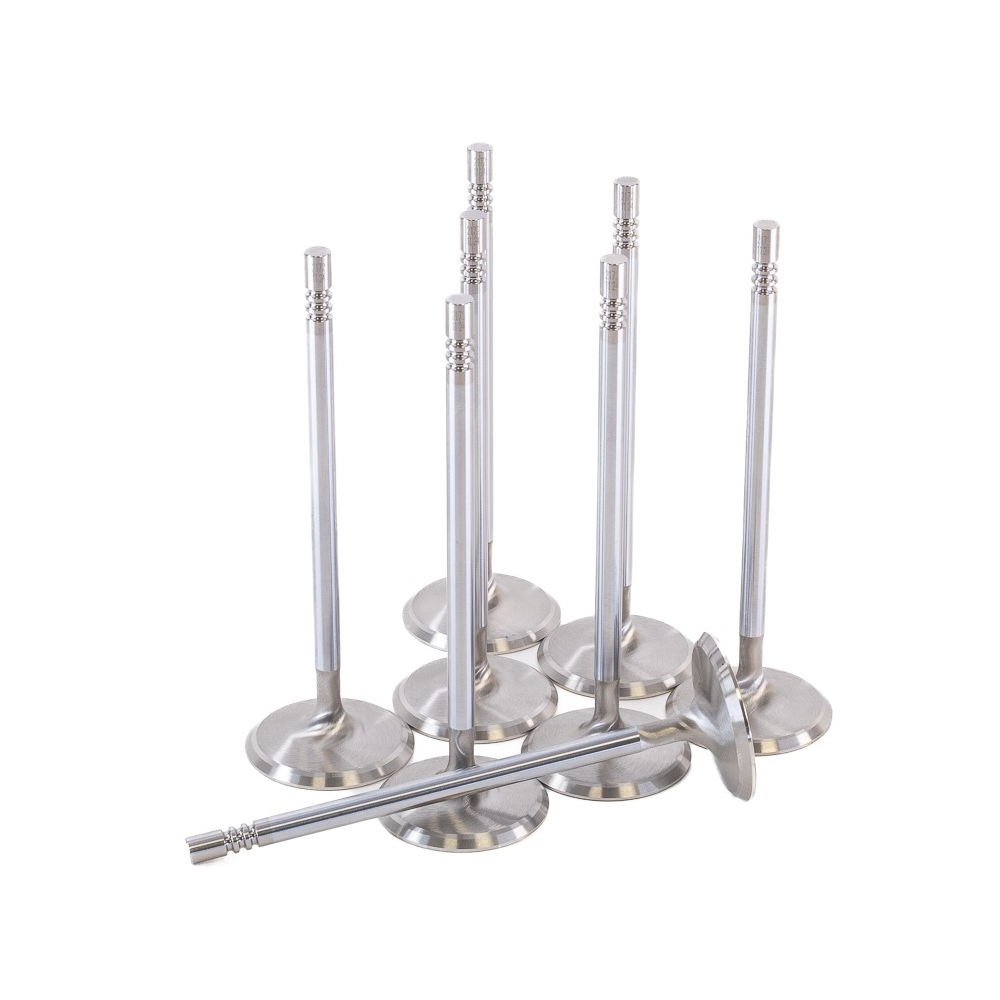

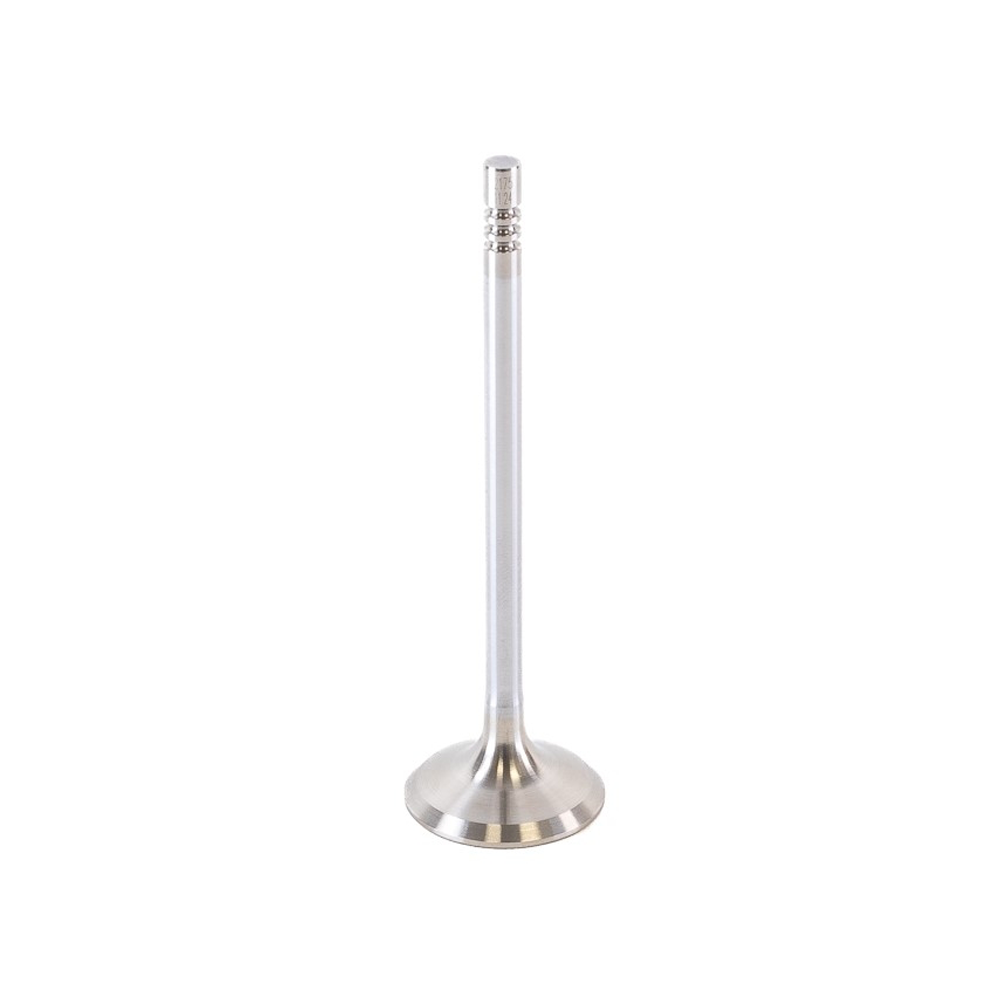

  • GSC Power-Division Super Alloy STD Size Exhaust Valve for the 5.2L Voodoo & Predator

    GSC Power-Division Super Alloy STD Size Exhaust Valve for the 5.2L Voodoo & Predator

    Exhaust Valves

    Super Alloy STD Size Exhaust Valve for the 5.2L Voodoo & Predator

     SKU:GSC2175 Make:Ford Stem Diameter:5.96 Overall Length:109.8 Head Diameter:32.5
    From $50.23
    From $50.23 $50.23

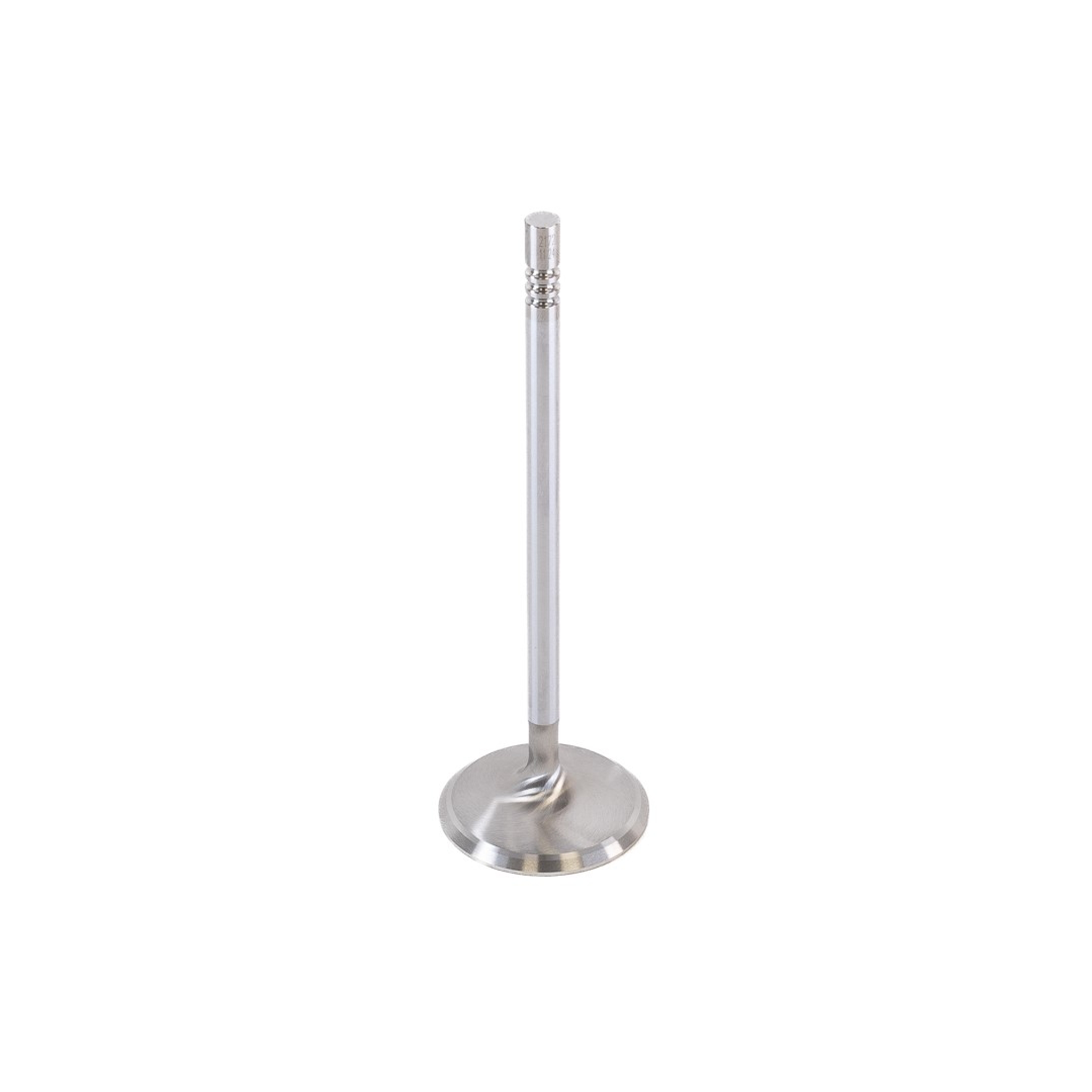

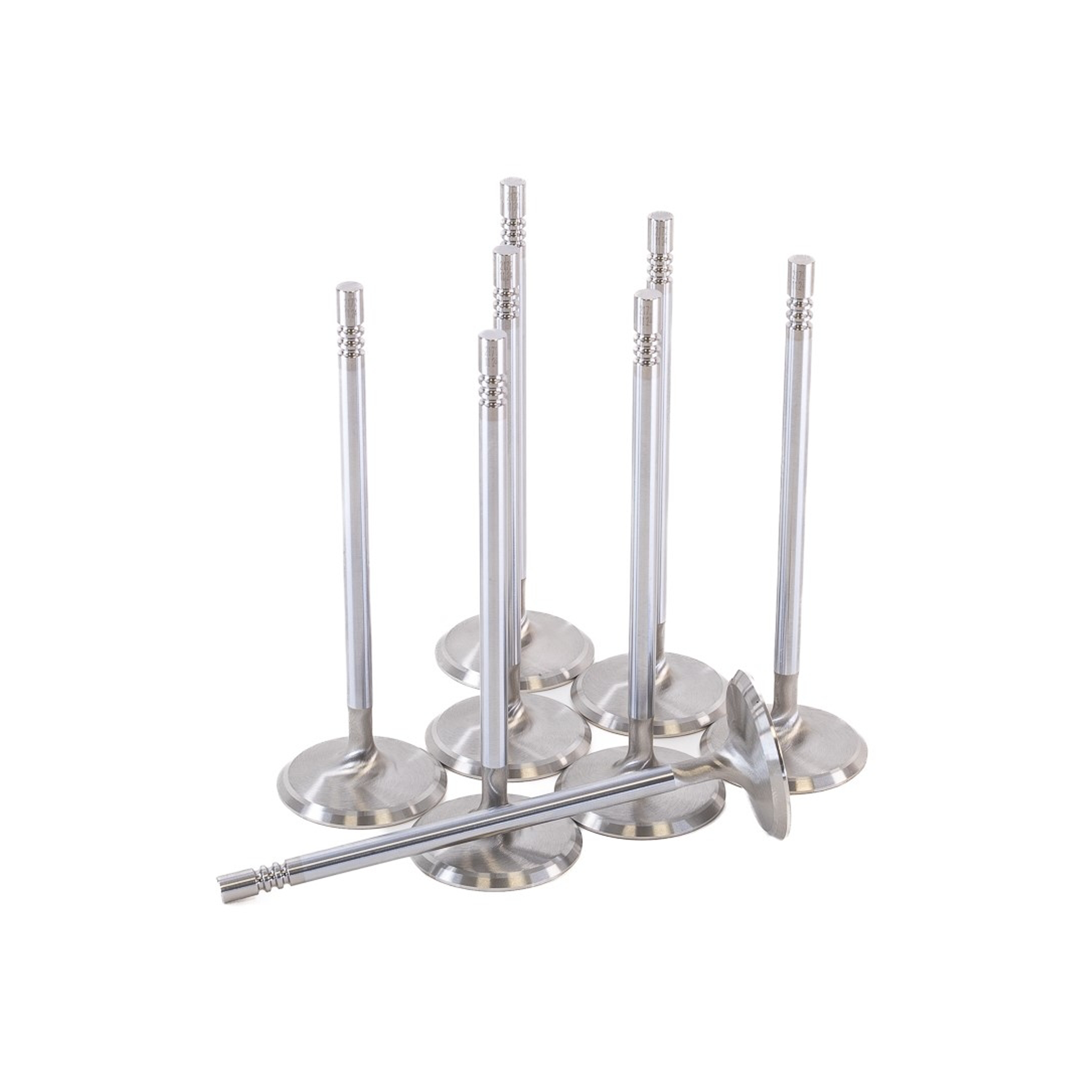

  • GSC Power-Division Stainless Steel STD Size Head Intake Valve for Ford Voodoo Predator 5.2L

    GSC Power-Division Stainless Steel STD Size Head Intake Valve for Ford Voodoo Predator 5.2L

    Intake Valves

    STD Size Head Stainless Steel Intake Valves for Ford Voodoo Predator 5.2L

     SKU:GSC2172 Make:Ford Stem Diameter:5.97 Overall Length:121.1 Head Diameter:38.26
    From $33.21
    From $33.21 $33.21

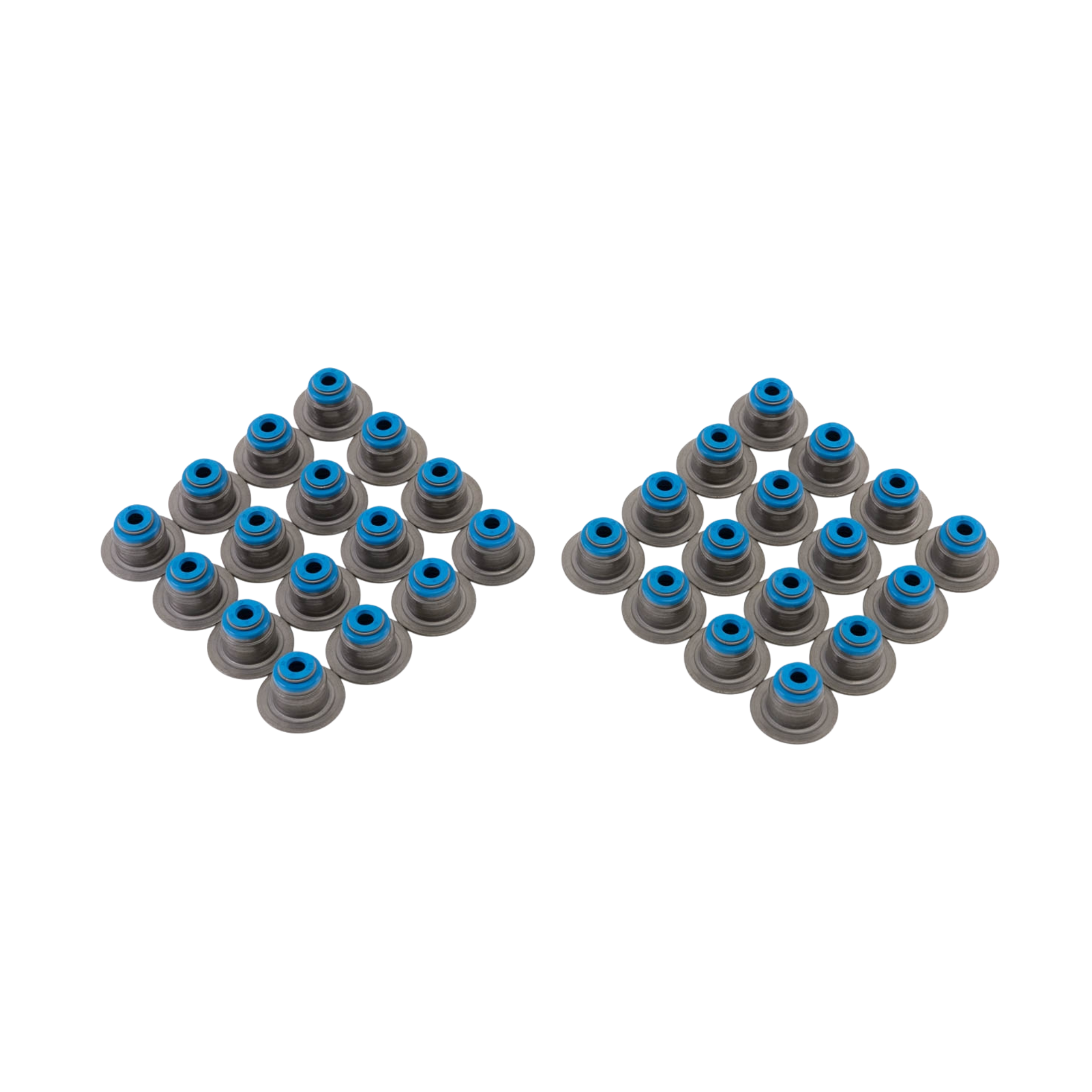

  • GSC Power-Division Viton Valve Stem Seals for the Ford Coyote Gen 3, Gen 4, & 5.2L.

    GSC Power-Division Viton Valve Stem Seals for the Ford Coyote Gen 3, Gen 4, & 5.2L

    Valve Stem Seals

    Viton Valve Stem Seals for the Ford Coyote ( GEN 3/4 ) and 5.2L

     SKU:GSC1102 Make:Ford
    $78.06
    $78.06 $78.06
