CAMSHAFT GUIDE

VOODOO CROSS PLANE FIRING ORDER

The Ford 5.2L Voodoo cylinder head is one of the highest-flowing naturally aspirated DOHC V8 cylinder head designs Ford has produced. While originally developed for the GT350 flat-plane engine, these heads are increasingly used on Coyote short blocks running the traditional cross-plane firing order.

GSC Power-Division camshafts are engineered specifically for these Voodoo head cross-plane applications, using the same proven camshaft profiles developed for the GT350 platform with the correct lobe phasing to match the cross-plane crankshaft configuration.

QUICK COMPARE

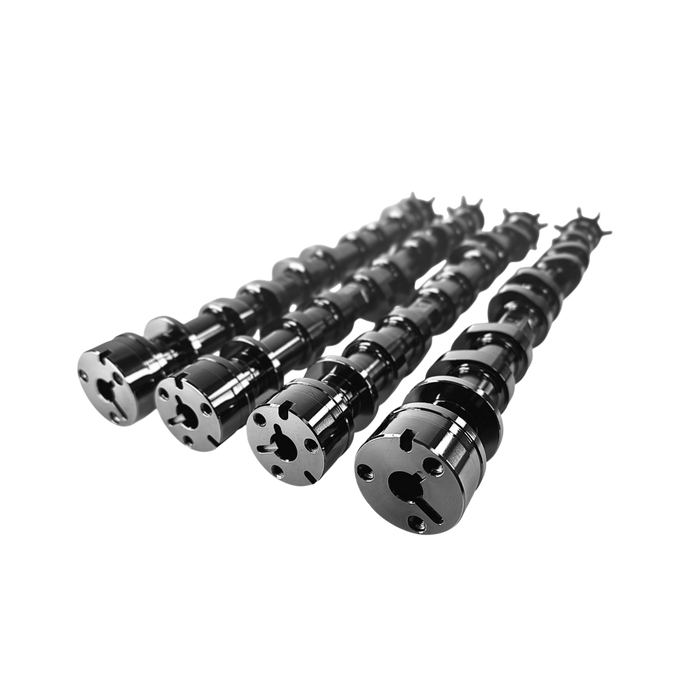

GSC R2 Camshafts – Voodoo Cross Plane
Series

R2

GSC R2 Camshafts – Voodoo Cross Plane
$2,089.41
$2,089.41 $2,089.41
SKU
GSC7075R2
Intent
Top end stock-port / ported head race profile
Advertised Duration
292°/IN 316°/EX
Duration @ 0.050"
239°/IN 241°/EX
Max Lift
.560"/IN .560"/EX
Fuel
Pump / Race / E85–E90
RPM Band (Peak)
6,000–8,500 (8,100–8,300)
Valve Springs
Upgrade required (GSC springs + Ti retainers)
Head Type
Stock and ported heads
Notes
VCT retained; track-focused high-flow combos
GSC R3 Camshafts – Voodoo Cross Plane
Series

R3

GSC R3 Camshafts – Voodoo Cross Plane
$2,089.41
$2,089.41 $2,089.41
SKU
GSC7075R3
Intent
Extreme race · ported heads
Fuel
Methanol
Advertised Duration
300°/IN 316°/EX
Duration @ 0.050"
246°/IN 252°/EX
Max Lift
.560"/IN .560"/EX
RPM Band (Peak)
Active: 7k–10k (9.1k–9.3k~9.6k–10k) · Locked: 6.7–9.5k (8.3k–8.5k~8.8k–9.2k)
Valve Springs
Upgrade required (GSC springs + Ti retainers)
Head Type
Ported heads
Notes
Active or locked VCT; timing refs on product page

Always verify piston-to-valve clearance on your exact build. VCT strategy is tuner-dependent.

MANUFACTURED IN HOUSE

Our Voodoo camshaft profiles are developed using advanced computer simulation, decades of overhead valvetrain engineering experience, and real cylinder head flow data to precisely synchronize valve events with the airflow characteristics of the Voodoo head. The result is improved cylinder filling, stronger midrange torque, and increased top-end power.

At the core of every camshaft is GSC’s forged billet cam blank, manufactured in-house from bearing-grade alloy steel sourced from a single U.S. steel mill for absolute material consistency. Each camshaft is finished with our BLACK ISE surface treatment to reduce friction and provide exceptional wear protection under high spring loads and elevated engine speeds.

DURABILITY &
CONSISTENCY

Precision-machined on advanced CNC equipment to tolerances tighter than OEM, these camshafts deliver the durability, consistency, and repeatable performance serious engine builders expect.

Camshafts are available for both the original GT350 flat-plane firing order and cross-plane Coyote applications using Voodoo cylinder heads.

When it comes to extracting maximum performance from Voodoo cylinder head combinations on cross-plane Coyote engines, GSC Power-Division delivers the valvetrain technology professional builders trust.
