  • GSC Power-Division Ovate Conical Spring kit for the Gen 3/4 Ford Coyote

    GSC Power-Division Ovate Conical Spring kit for the Gen 3/4 Ford Coyote

    Spring Kit

    Ovate Conical Spring kit for the Gen 3/4 Ford Coyote

     SKU:GSC5012 Make:Ford Spring Type:Ovate Conical Coil Bind:0.960 Install Height:1.621 Seat Pressure ( Lbs ):97 Open Pressure:295 lbs @ 1.020 Max Boost:30+ psi
    $920.00
    $920.00
  • GSC Power-Division Super Alloy STD Size Exhaust Valve for the 5.2L Voodoo & Predator

    GSC Power-Division Super Alloy STD Size Exhaust Valve for the 5.2L Voodoo & Predator

    Exhaust Valves

    Super Alloy STD Size Exhaust Valve for the 5.2L Voodoo & Predator

     SKU:GSC2175 Make:Ford Stem Diameter:5.96 Overall Length:109.8 Head Diameter:32.5
    From $50.23
    From $50.23
  • GSC Power-Division Stainless Steel STD Size Head Intake Valve for Ford Voodoo Predator 5.2L

    GSC Power-Division Stainless Steel STD Size Head Intake Valve for Ford Voodoo Predator 5.2L

    Intake Valves

    STD Size Head Stainless Steel Intake Valves for Ford Voodoo Predator 5.2L

     SKU:GSC2172 Make:Ford Stem Diameter:5.97 Overall Length:121.1 Head Diameter:38.26
    From $33.21
    From $33.21
  • GSC Power-Division Stainless Steel STD Size Intake Valve for 5.0L Coyote GEN 1/2

    GSC Power-Division Stainless Steel STD Size Intake Valve for 5.0L Coyote GEN 1/2

    Intake Valves

    Stainless Steel STD Size Intake Valves for 5.0L Coyote GEN 1/2

     SKU:GSC2152 Make:Ford Stem Diameter:5.97 Overall Length:120.00 Head Diameter:37.27
    From $32.57
    From $32.57

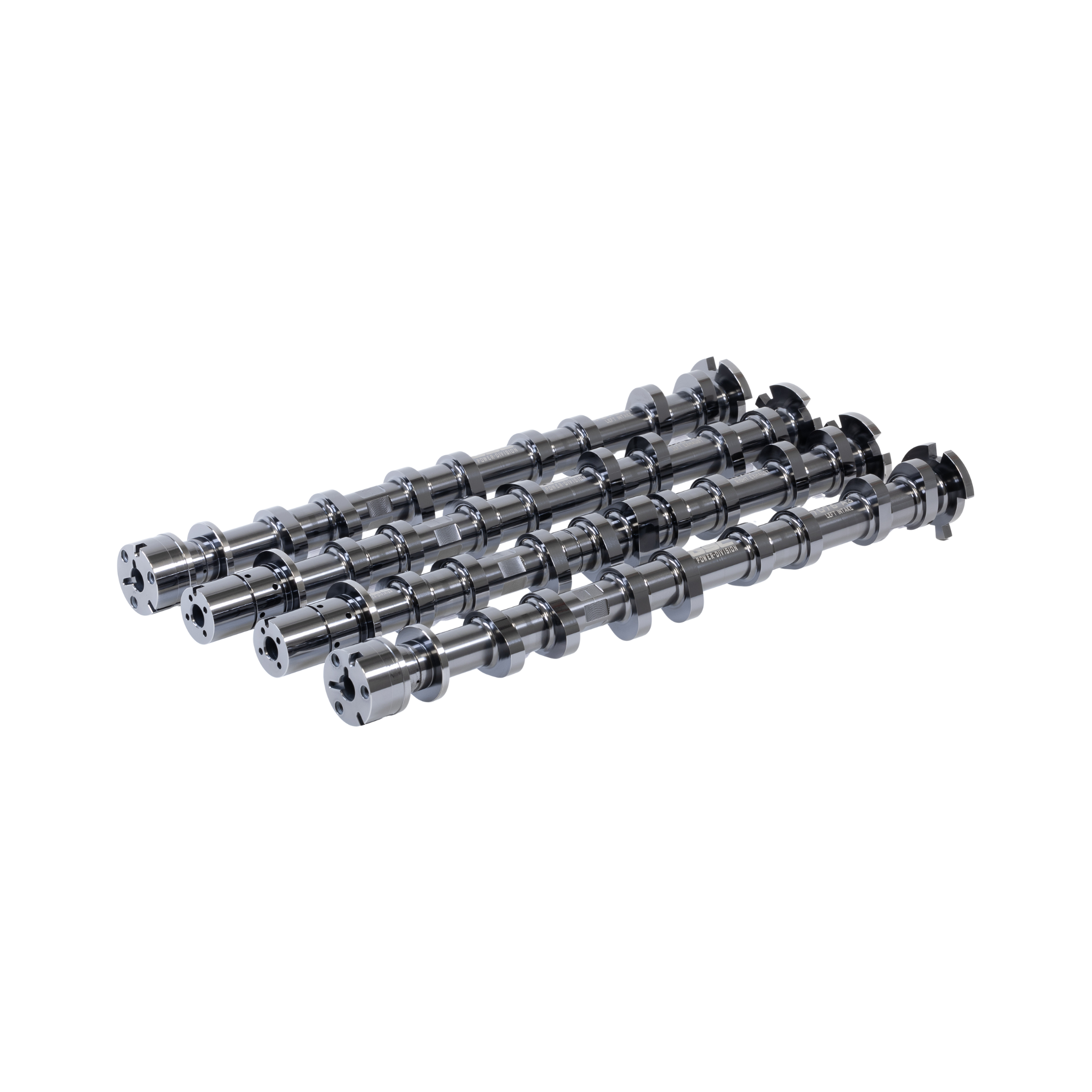

  • GSC Power Division R2 camshaft set for Gen 3 5.0L Coyote engines, showing the USA-forged billet steel finish and BLACK ISE anti-friction coating.

    GSC R2 Camshafts – 5.0L Coyote Gen 3 (2018–2020 F150 5.0)

    Camshafts

    R2 Camshafts for 5.0L Coyote Gen 3 (2018–2020 F150 5.0)

     SKU:GSC7076R2 Make:Ford Series:R2
    Intent
    Ported head race profile
    Fuel
    Pump / Race / E85-E90
    Advertised Duration
    292°/IN 304°/EX
    Duration @ 0.050"
    239°/IN 241°/EX
    Max Lift
    .560"/IN .560"/EX
    RPM Band (Peak)
    5,800-8,500 (~8,100)
    Valve Springs
    Upgrade required (GSC springs + Ti retainers)
    Head Type
    Ported heads
    DI Pump Lobe
    OEM geometry retained
    Notes
    VCT retained; track-focused, high-flow combos
    $2,089.41
    $2,089.41
  • GSC Power-Division Stainless Steel STD Size Exhaust Valve for 5.0L Coyote GEN 1/2

    GSC Power-Division Stainless Steel STD Size Exhaust Valve for 5.0L Coyote GEN 1/2

    Exhaust Valves

    Stainless Steel - STD Size Exhaust Valves for 5.0L Coyote ( GEN 1/2 )

     SKU:GSC2151 Make:Ford Stem Diameter:5.96 Overall Length:108.5 Head Diameter:31.75
    From $30.92
    From $30.92
  • GSC Power-Division Super Alloy STD Size Exhaust Valve for the 5.0L Coyote GEN 3

    GSC Power-Division Super Alloy STD Size Exhaust Valve for the 5.0L Coyote GEN 3

    Exhaust Valves

    Super Alloy STD Size Exhaust Valve for the 5.0L Coyote ( GEN 3 )

     SKU:GSC2165 Make:Ford Stem Diameter:5.96 Overall Length:109.60 Head Diameter:32.00
    From $49.40
    From $49.40
  • GSC Power-Division Stainless Steel STD Size Head Intake Valve for 5.0L Coyote GEN 3

    GSC Power-Division Stainless Steel STD Size Head Intake Valve for 5.0L Coyote GEN 3

    Intake Valves

    STD Size Head Stainless Steel Intake Valves for 5.0L Coyote GEN 3

     SKU:GSC2162 Make:Ford Stem Diameter:6 Overall Length:120.70 Head Diameter:37.60
    From $32.72
    From $32.72
  • GSC R2 Camshafts – Voodoo Cross Plane

    GSC R2 Camshafts – Voodoo Cross Plane

    Camshafts

    R2 Camshafts for Voodoo Cross Plane

     SKU:GSC7075R2 Make:Ford Series:R2
    Intent
    Top end stock-port / ported head race profile
    Advertised Duration
    292°/IN 316°/EX
    Duration @ 0.050"
    239°/IN 241°/EX
    Max Lift
    .560"/IN .560"/EX
    Fuel
    Pump / Race / E85–E90
    RPM Band (Peak)
    6,000–8,500 (8,100–8,300)
    Valve Springs
    Upgrade required (GSC springs + Ti retainers)
    Head Type
    Stock and ported heads
    Notes
    VCT retained; track-focused high-flow combos
    $2,089.41
    $2,089.41
  • GSC R3 Camshafts – Voodoo Cross Plane

    GSC R3 Camshafts – Voodoo Cross Plane

    Camshafts

    R3 Camshafts for Voodoo Cross Plane

     SKU:GSC7075R3 Make:Ford Series:R3
    Intent
    Extreme race · ported heads
    Fuel
    Methanol
    Advertised Duration
    300°/IN 316°/EX
    Duration @ 0.050"
    246°/IN 252°/EX
    Max Lift
    .560"/IN .560"/EX
    RPM Band (Peak)
    Active: 7k–10k (9.1k–9.3k~9.6k–10k) · Locked: 6.7–9.5k (8.3k–8.5k~8.8k–9.2k)
    Valve Springs
    Upgrade required (GSC springs + Ti retainers)
    Head Type
    Ported heads
    Notes
    Active or locked VCT; timing refs on product page
    $2,089.41
    $2,089.41
  • GSC R3 Camshafts – Voodoo Flat-Plane

    GSC R3 Camshafts – Voodoo Flat-Plane

    Camshafts

    R3 Camshafts for Voodoo Flat-Plane

     SKU:GSC7077R3 Make:Ford Series:R3
    Intent
    Extreme race · ported heads
    Advertised Duration
    300°/IN 316°/EX
    Duration @ 0.050"
    246°/IN 252°/EX
    Max Lift
    .560"/IN .560"/EX
    Fuel
    Methanol
    RPM Band (Peak)
    Active: 7k–10k (9.1k–9.3k~9.6k–10k) · Locked: 6.7–9.5k (8.3k–8.5k~8.8k–9.2k)
    Valve Springs
    Upgrade required (GSC springs + Ti retainers)
    Head Type
    Ported heads
    Notes
    Active or locked VCT; timing refs on product page
    $2,089.41
    $2,089.41
  • GSC R2 Camshafts – Voodoo Flat Plane

    GSC R2 Camshafts – Voodoo Flat Plane

    Camshafts

    R2 Camshafts for Voodoo Flat Plane

     SKU:GSC7077R2 Make:Ford Series:R2
    Intent
    Top end stock-port / ported head race profile
    Fuel
    Pump / Race / E85–E90
    Advertised Duration
    292°/IN 304°/EX
    Duration @ 0.050"
    239°/IN 241°/EX
    Max Lift
    .560"/IN .560"/EX
    RPM Band (Peak)
    6,000–8,500 (8,100–8,300)
    Valve Springs
    Upgrade required (GSC springs + Ti retainers)
    Head Type
    Stock and ported heads
    Notes
    VCT retained; track-focused high-flow combos
    $2,089.41
    $2,089.41
