GSC Power-Division Single Spring with Ti Retainer Kit for the Toyota 2JZ & 1JZ

GSC Power-Division Single Spring with Ti Retainer Kit for Toyota 2JZ & 1JZ

$498.47
$498.47 $498.47
Skip to product information
GSC Power-Division Single Spring with Ti Retainer Kit for the Toyota 2JZ & 1JZ
GSC Power-Division Single Spring with Ti Retainer Kit for Toyota 2JZ & 1JZ
SKU: GSC5744

GSC Power-Division Single Spring with Ti Retainer Kit for Toyota 2JZ & 1JZ

Out of stock: 0
$498.47
$498.47 $498.47

Prop 65 Warning

This product can expose you to chemicals including Nickel, which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

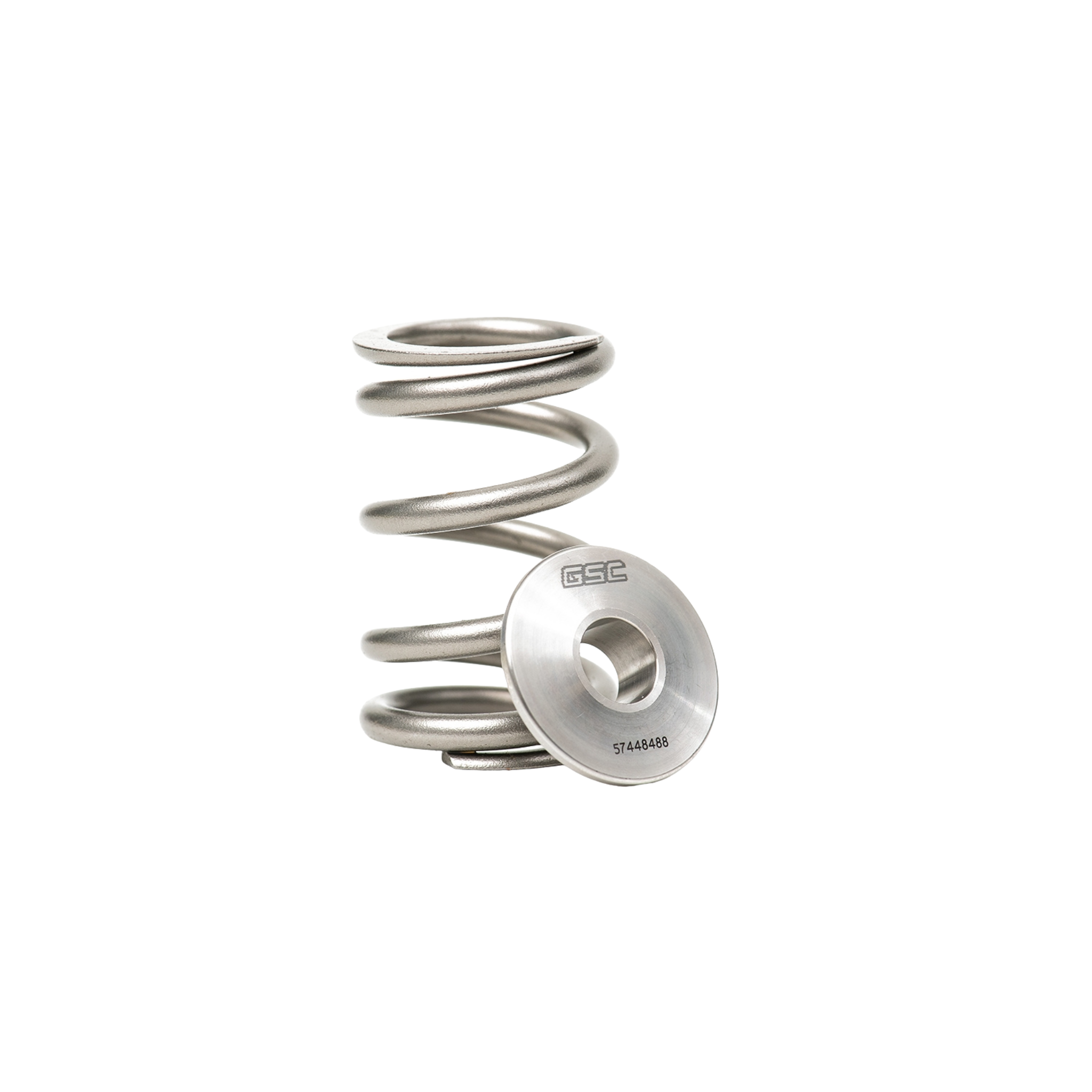

The GSC Power-Division Single Cylindrical Valve Spring Kit with Ti Retainer for the 2JZ & 1JZ includes 24 titanium retainers and 24 cylindrical valve springs. This is a great spring kit for the daily driver with an S1 or S2 cam profile that keeps the boost and revs below 32 psi and 8500 RPM.

These round wire springs still have the same high quality attention to detail as our popular beehive kits. The GSC5744 is Nano-peened and batched according to seat pressure within our specs. The lightweight titanium retainers are CNC machined with tolerances and repeatability that are unmatched by other brands. This keeps a consistent seat pressure across the head for ultimate reliability and performance.

Product Details
  • 80lbs @ 1.320" install height
  • 239lbs @ 0.930"
  • Max RPM: 8,500 RPM
  • Max Boost: 32 psi
Product fitment
2JZ-GTE
1JZ-GTE

IMAGES ARE FOR ILLUSTRATION PURPOSES ONLY.

Valve Spring Value
Setup Cylindrical
Coil Bind (in) 0.845
Install Height (in) 2JZ: 1.320
1JZ: 1.282
Seat Pressure (lbs) 2JZ: 80
1JZ: 90
Open Pressure 2JZ: 192lbs @ 0.930"
1JZ: 197lbs @ 0.912"
Maximum Valve Lift (in) 2JZ: 0.415
1JZ: 0.382

SPRING KITS

Valve spring performance is critical to engine durability, RPM capability, and valvetrain control. GSC Power-Division spring kits are engineered to provide the stability required for aggressive cam profiles, elevated boost levels, extended RPM ranges, and demanding racing environments.

Our spring systems are developed with careful attention to harmonics, installed loads, open pressures, coil dynamics, retainer compatibility, and long-term durability. Many GSC applications utilize advanced conical spring technology to improve damping characteristics, reduce harmonics, minimize spring stress, and maintain superior valve control at elevated engine speeds. The result is increased confidence when pushing horsepower, RPM, and boost beyond conventional limits.

Frequently Asked Questions

Why should I upgrade my valve springs?

Upgraded valve springs provide greater valve control at high RPM, higher boost pressures, and with more aggressive camshaft profiles. This helps prevent valve float and improves reliability.

What are the benefits of conical valve springs?

Conical valve springs offer reduced retainer mass, improved natural frequency, greater stability, and improved high-RPM performance compared to traditional cylindrical springs or beehive springs.

Do your spring kits include retainers?

Many GSC spring kits include titanium retainers. Refer to individual product descriptions for complete kit contents.

Can I reuse my factory retainers?

Only if specifically stated. Most performance applications should utilize the retainers recommended for the spring package.

GENERAL F.A.Q

Where are GSC products manufactured?

Many GSC products, including our camshafts, are designed, machined, and finished in-house at our facility in South Carolina, USA. We maintain strict quality control throughout the manufacturing process.

How long has GSC been in business?

GSC Power-Division has been serving the performance automotive industry for over 20 years, supplying racers, engine builders, tuners, and enthusiasts worldwide.

Do you sell directly to consumers?

Yes. We sell directly through our website and also through an extensive network of authorized dealers and distributors worldwide.

Does GSC cover engine damage?

GSC’s warranty covers defects in the product itself. Consequential damages, including engine damage, labor, towing, or vehicle downtime, are not covered.

Will racing void my warranty?

Products used in racing or competition environments are subject to conditions outlined in our warranty policy. Performance applications inherently involve risks beyond normal operating conditions.
