GSC R2 Camshafts – 5.0L Coyote Gen 3 (2018–2023 Mustang 5.0)
GSC R2 Camshafts – 5.0L Coyote Gen 3 (2018–2023 Mustang 5.0)
SKU: GSC7073R2

GSC R2 Camshafts – 5.0L Coyote Gen 3 (2018–2023 Mustang 5.0)

Low stock: 1
$2,089.41
$2,089.41 $2,089.41

Prop 65 Warning

This product can expose you to chemicals including Nickel, which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Ported-head race cams for Gen-3 Coyote. Optimized for high-flow setups; 5,800–8,500 rpm (≈8,100 peak). Spring upgrade required; DI/HPFP lobe retained; pump/race/E85–E90 ready.

Built for ported heads and real track work, the GSC R2 profile drives the Coyote hard to 8,100 rpm with a usable band from 5,800–8,500 rpm. Events are modeled for ported Gen 3 head flow behavior and rocker geometry for high-flow combinations, then cut from U.S.-made forged billet blanks and finished with BLACK ISE for reduced friction and long life. Runs on pump gas, race fuel, or ethanol blends (E85/E90).

Direct Injection note: the high-pressure fuel pump (DI/HPFP) lobe is maintained to OEM specification—stroke and timing are retained for proper pump operation.

    Always verify piston-to-valve clearance on your exact build. VCT strategy is tuner dependent.

    Valve springs: Upgrade required (use GSC springs; Ti retainers recommended)

    Specifications
    • Fuel Pump / Race / E85–E90
    • RPM Band 5,800–8,500 rpm (≈8,100 peak)
    • Valve Springs Upgrade required (GSC springs + Ti retainers)
    • Use Case Ported head race profile — track-focused
    • Head Type Ported heads (high-flow)
    • DI Pump Lobe OEM geometry retained (HPFP compatible)

    Product Details
    • Profile intent: Ported head race profile; optimized for higher-flow combos and serious track use
    • Fuel: Pump gas, race fuel, E85/E90
    • Peak power ~8,100 rpm · Powerband 5,800–8,500 rpm
    • VCT: Tuner-managed phasing window recommended for best area under the curve
    • DI fuel pump lobe: Maintains OEM lobe data for correct HPFP stroke/timing
    • Manufacturing: MADE IN THE USA; forged from U.S.-sourced bearing-grade steel, BLACK ISE surface treated, CNC-finished to tighter-than-OEM tolerances
    • Fitment: 2018–2023 Mustang GT 5.0L
    Product fitment
    Coyote Gen 3 Mustang

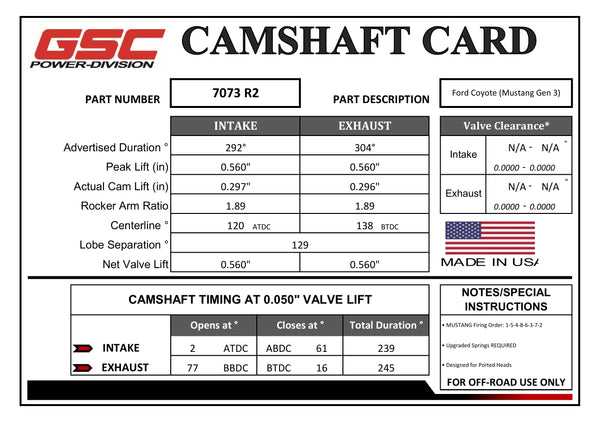

    CAMSHAFT CARD - GSC7073R2

    IMAGES ARE FOR ILLUSTRATION PURPOSES ONLY.

    INTAKE
    ADV Duration
    292°
    Duration @ 0.050"
    239°
    Center Line
    120°
    Max Lift
    .560"
    VCT Cam Timing @ Peak Power
    113° ATDC
    EXHAUST
    ADV Duration
    304°
    Duration @ 0.050"
    241°
    Center Line
    138°
    Max Lift
    .560"
    VCT Cam Timing @ Peak Power
    115° BTDC

    Camshafts

    GSC Power-Division camshafts are engineered to maximize airflow, power production, and usable RPM while maintaining the valvetrain stability required for real-world performance. Unlike generic “one-size-fits-all” profiles, GSC camshafts are developed using application-specific analysis that considers cylinder head flow characteristics, valvetrain geometry, rocker motion, intended powerband, fuel type, and engine configuration.

    Manufactured from forged barstock in house with precision-ground lobe profiles, GSC cams are trusted by engine builders, tuners, racers, and enthusiasts around the world — from street cars to record-setting drag programs. Whether the goal is improved response, broader power delivery, or extreme horsepower capability, GSC camshafts are built around one principle: maximizing performance without compromising valvetrain control.

    Frequently Asked Questions

    What makes GSC Power-Division camshafts different?

    GSC Power-Division camshafts are engineered specifically for high-performance applications using proprietary lobe designs, premium billet materials, and advanced manufacturing processes. Every camshaft profile is developed to maximize airflow, power, durability, and valvetrain stability for its intended application.

    How do I choose the correct camshaft for my application?

    The best camshaft depends on your engine configuration, turbocharger size, intended RPM range, fuel type, cylinder head setup, and horsepower goals. If you’re unsure, contact our technical support team for recommendations.

    Will aftermarket camshafts increase horsepower?

    Yes. Properly matched camshafts can significantly improve airflow, power, torque, and RPM capability. Actual gains depend on the overall engine combination.

    Do I need valve springs with aftermarket camshafts?

    In many cases, yes. More aggressive camshaft profiles require upgraded valve springs to maintain valve control at higher RPMs and boost levels. Product pages will indicate whether upgraded springs are required.

    Can I use GSC camshafts with OEM valve springs?

    Some Stage 1 camshafts are compatible with OEM springs under certain conditions. Always verify spring requirements listed on the product page before installation.

    Do I need a tune after installing camshafts?

    Most performance camshaft installations benefit from ECU recalibration. A proper tune helps maximize power, drivability, and reliability.

    Are your camshafts billet?

    Yes. GSC performance camshafts are manufactured from premium forged billet cores for maximum strength and durability.

    What is BLACK ISE?

    BLACK ISE is GSC’s advanced surface treatment process designed to reduce friction and enhance durability in high-performance valvetrain environments.

    GENERAL F.A.Q

    Where are GSC products manufactured?

    Many GSC products, including our camshafts, are designed, machined, and finished in-house at our facility in South Carolina, USA. We maintain strict quality control throughout the manufacturing process.

    How long has GSC been in business?

    GSC Power-Division has been serving the performance automotive industry for over 20 years, supplying racers, engine builders, tuners, and enthusiasts worldwide.

    Do you sell directly to consumers?

    Yes. We sell directly through our website and also through an extensive network of authorized dealers and distributors worldwide.

    Does GSC cover engine damage?

    GSC’s warranty covers defects in the product itself. Consequential damages, including engine damage, labor, towing, or vehicle downtime, are not covered.

    Will racing void my warranty?

    Products used in racing or competition environments are subject to conditions outlined in our warranty policy. Performance applications inherently involve risks beyond normal operating conditions.
